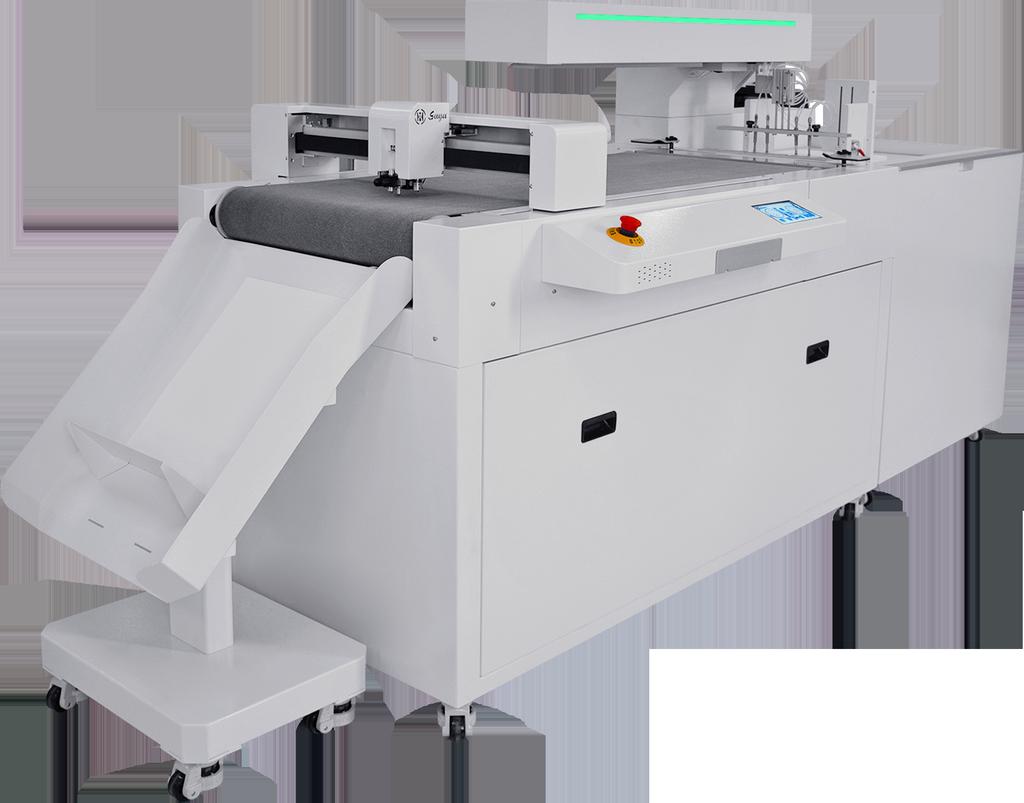

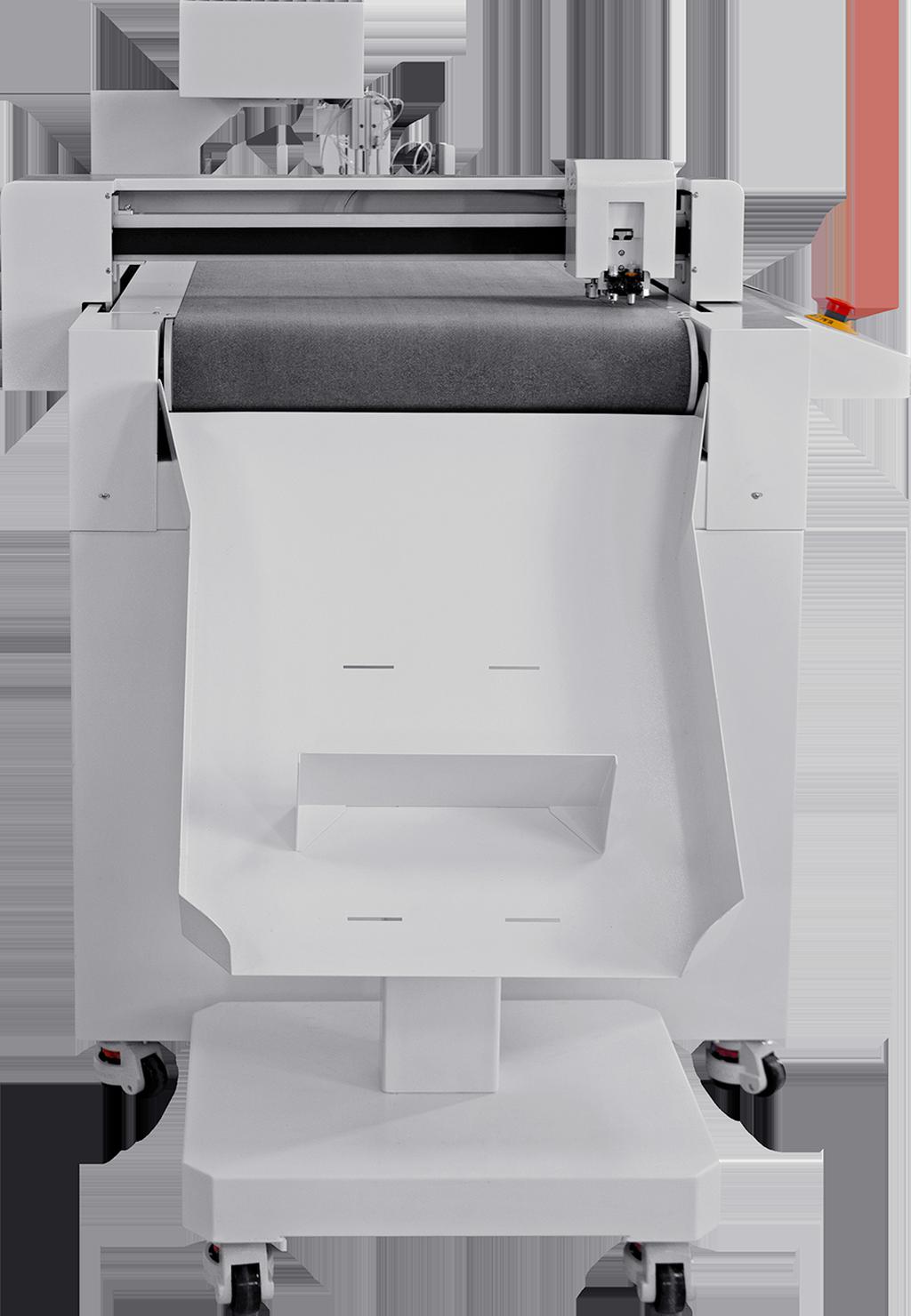

MEC-A 4060 box Cutting and creasing plotter
1. Digital die-cutting crafts which meet mass production process standard
2. More intelligent interaction with 7-inch touch screen
3. 4 tools in 4 combinations
4. Automatic induction lifting feeder combined with independent paper feeding system
5. Feeding, REAR scanning and REAR cutting separately with non-interference
6. Wider application scenarios with wider format and thicker material
7. More medias can be placed up to 18 CM stacking
8. The speed are greatly improved both on scanning and running
Prev：
MEC-F6090 Flatbed Cutting Machine
Next：
DH-4045C Automatic Box Forming Machine
PRODUCT ENQUIRY
MEC-A0604 cutting plotter is a model with superior speed and accuracy.
Supported by a DSP control center and digital servo motor, it wins the market by its best cost-performance.

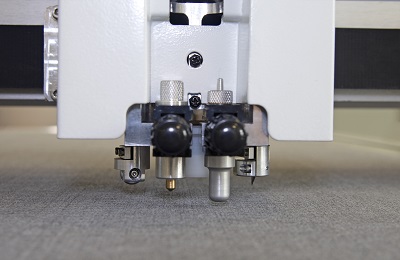

The cutting plotter has two tool-holders on the head and is universal for inserts of cutting knifes, scoring tools or plotting pens.
One cutting plotter can maximize the application range.

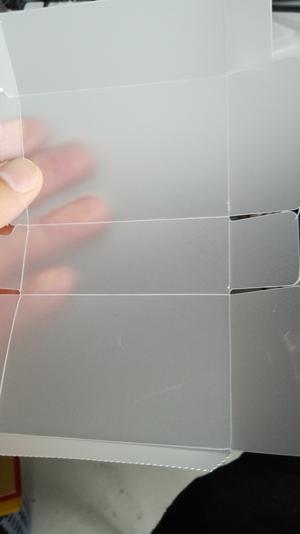

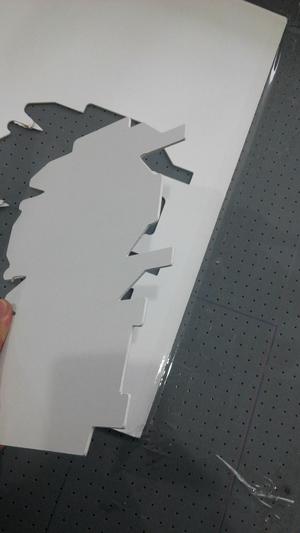

It is equipped with various kinds of cutting and impressing blades and can be used in the cutting, plotting and impressing of many materials such as PVC board, PP board and white card paper.

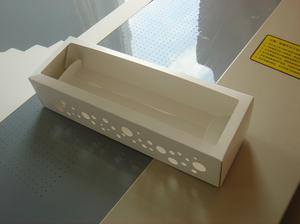

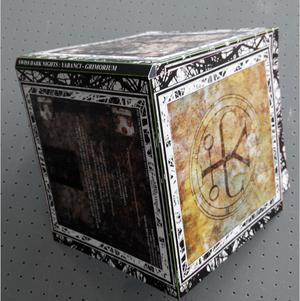

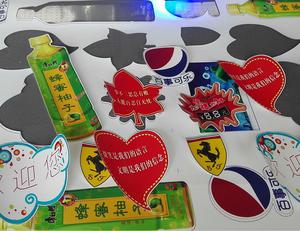

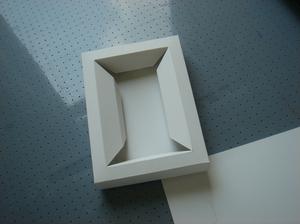

The cutting plotter helps you save time while reducing the cost. It is able to process cardboards, paper, PVC, film, sticker, etc.
The maximum cutting depth is up to 2mm, depending on material density.
We offer an English LCD menu.
|
Machine
configuration
|
|
|
model
name
|
MEC-A4060
|
|
Cutting Control System
|
X-high-power
brushless servo motor
|
|
Y-high-power brushless servo motor
|
|
Positioning Sensor type
|
digital camera（CCD）
|
|
Control panel
|
7 inch capactive touch screen
|
|
Number of holders
|
Double tool holders
|
|
Tangential blade type
|
Blade/pen/creasing tool
|
|
Media hold method
|
vacuum pump
|
|
Scanning code type
|
MARK/QR Code
|
|
Maximum width
|
730mmX1015mm
|
|
Maximum cutting size
|
660mmX980mm
|
|
Scanning speed
|
5-10s
|
|
Maximum actual cutting speed
|
100mm/s-700mm/s
|
|
10mm/step
|
|
Maximum cutting force
|
Creasing：0-1900gf（10gf/step）
|
|
Blade：0-1900gf（10gf/step）
|
|
Maximum paper weight
|
600g（Varies from different cutting materials）
|
|
Media feeding method
|
Pneumati
auto feeding system
|
|
sheets stack height
|
18cm,
upto 600pcs depends on thickness of the papre
|
|
Minimum character cutting size
|
About 10mm²（Varies
from contour patterns and medias）
|
|
Mechanical resolution
|
0.02mm
|
|
Programmable resolution
|
HPGL
0.025mm
|
|
Repeat precision
|
≤0.05mm
|
|
Cutting Media types
|
self-adhensive sticker, cardboard, corrugated paper,plastick,
etc
|
|
Connectivity
|
USB,TCP, Wifi, U disk
|
|
Software Compatibility
|
Corel
Draw/ Illustrator-plug in (U disk interface)
|
|
Working
Voltage and current
|
100VAC至120VAC,50/60Hz,Max current 6.8A
200VAC至240VAC,50/60Hz,Max Current 3.4A
|
|
Power
|
Max.350W
|
|
Vacuum pump
voltage and current
|
110VAC，50Hz，Rated Current 12.4A，60Hz，Rated Current 17.2A 220VAC，50Hz，Rated Current 6.2A，60Hz，Rated Current 8.6A
|
|
Power (Vacuum Pump)
|
50Hz，1.1KW；60Hz，1.3KW
|
|
Operation enviroment
|
Temperature ：+5℃到+35℃（Fahrenheit 41-95），Humidity：35%至70%RH（Non-condensing）
|
|
|
|
|
This parameter is subject to change without prior notice. The
company reserves the right of final interpretation
|
