MEC80 Oscillating knife cutting machine

1. MEC80 knife cutting machine uses new CNC knife cutting technology, our digital cutting machine has no burning and totally environmentally. It's equipped with oscillating cutter to meet customers' different requirements.
2. The high precision oscillating knife cutting machine can induce draft separately and easily cuts small pieces. And it is designed for production with small quantities and can save on costs while maintaining speed and accuracy.
3.High efficiency can be realized without making a high-cost knife model.
4. The platform detection device regulates the knife pressure automatically, enabling a level platform and perfect cutting.

Prev： MEC85 Box sample cutting machine
Next：MEC70RS Oscillating knife cutting machine

PRODUCT ENQUIRY

Vacuum pump	7.5 KW
Tool configuration	Multiple cutting knives
Safety device	Using infrared sensors, responsive, safe and reliable.
translational velocity	800-1200mm/s
Cutting speed	200-1000mm/s(according to different cutting materials)
Cutting thickness	≤30mm(according to different cutting materials)
Cutting materials	fabric, leather, cardboard, plastic, paper, rubber, EVA foam, and it can cut many types of foam, such as closed cell foam, magnetic sheets, rubber foam, foam ex, foam core, KT board, EPE foam, polyethylene foam, PE foam, PVC foam, etc.
Repeated accuracy	≤0.1mm
Capacity	2GB

Detail:

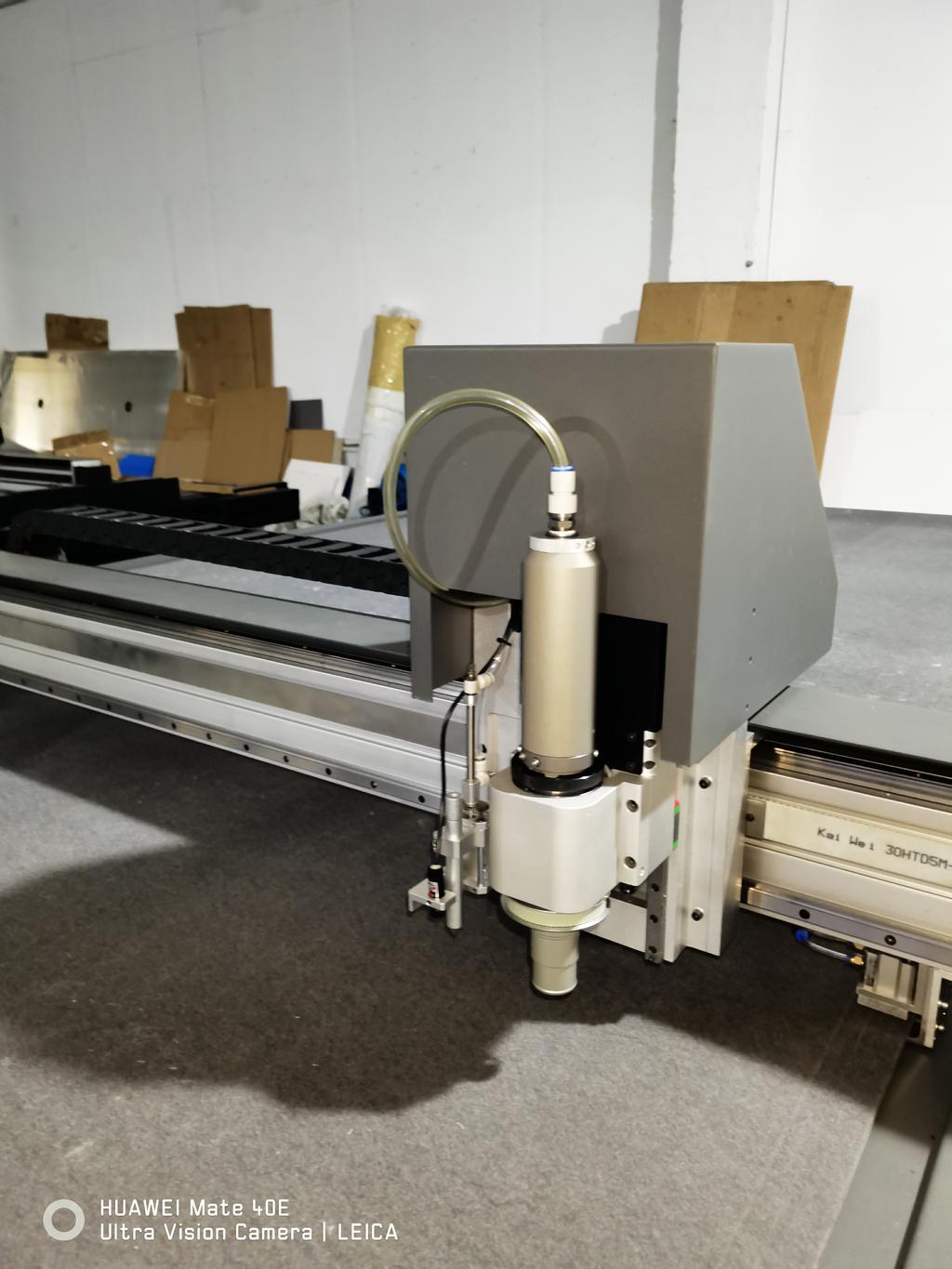

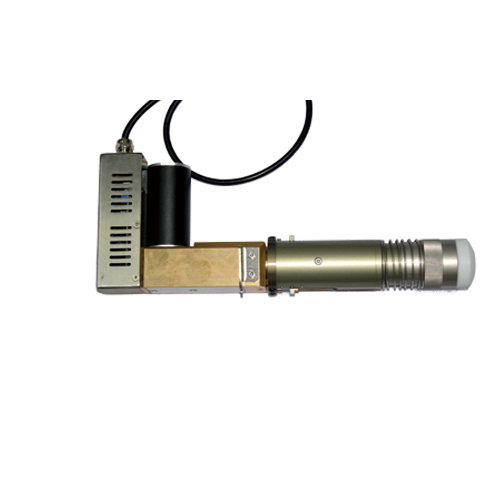

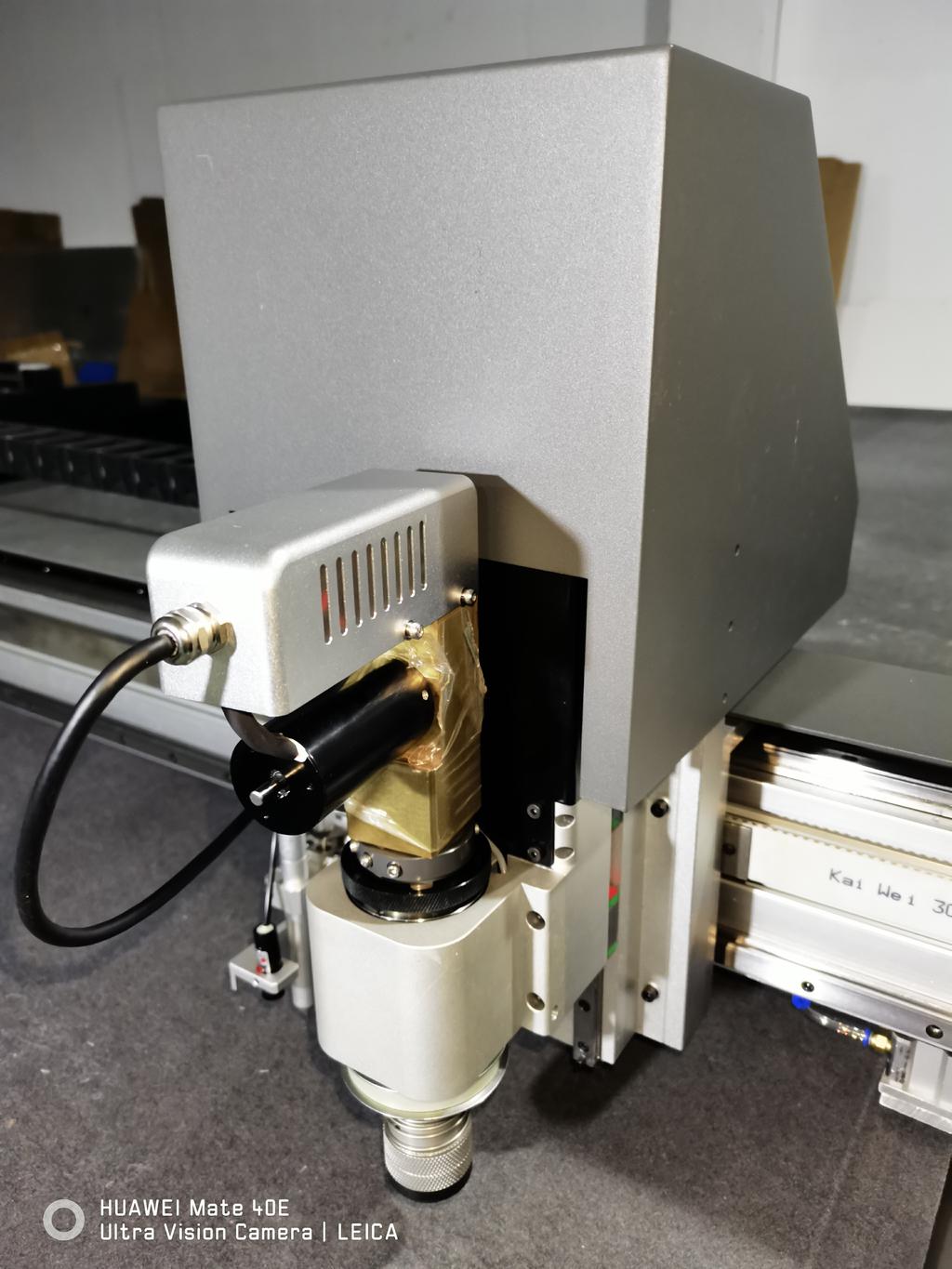

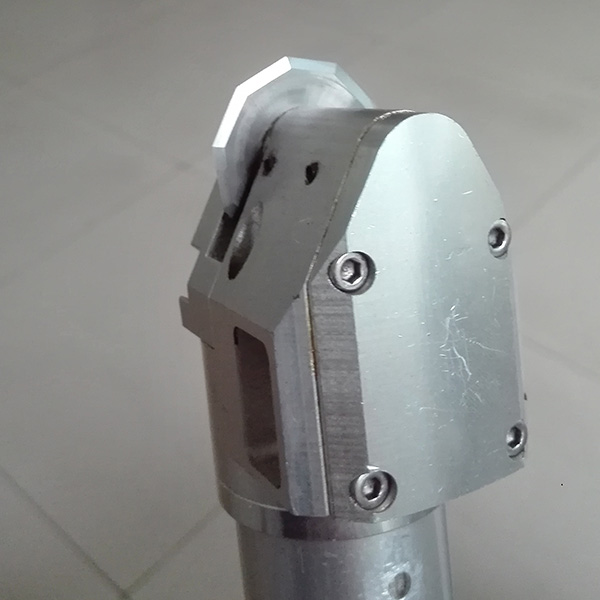

EOK: Oscillating knife
Electrical Osciallating Tool, driven by servo motor. EOT is for soft and dedium density materials. It is available with 1mm stroke.

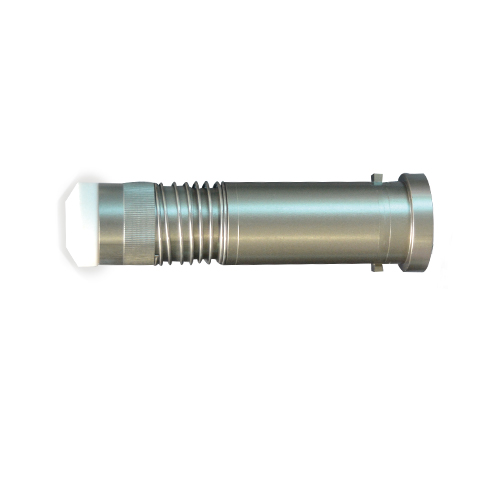

UCT: Drag Knife Tool.
Universal Cutting Tool is used for through-cutting. It can cut materials with thickness up to 3mm, fast speed and low cost.

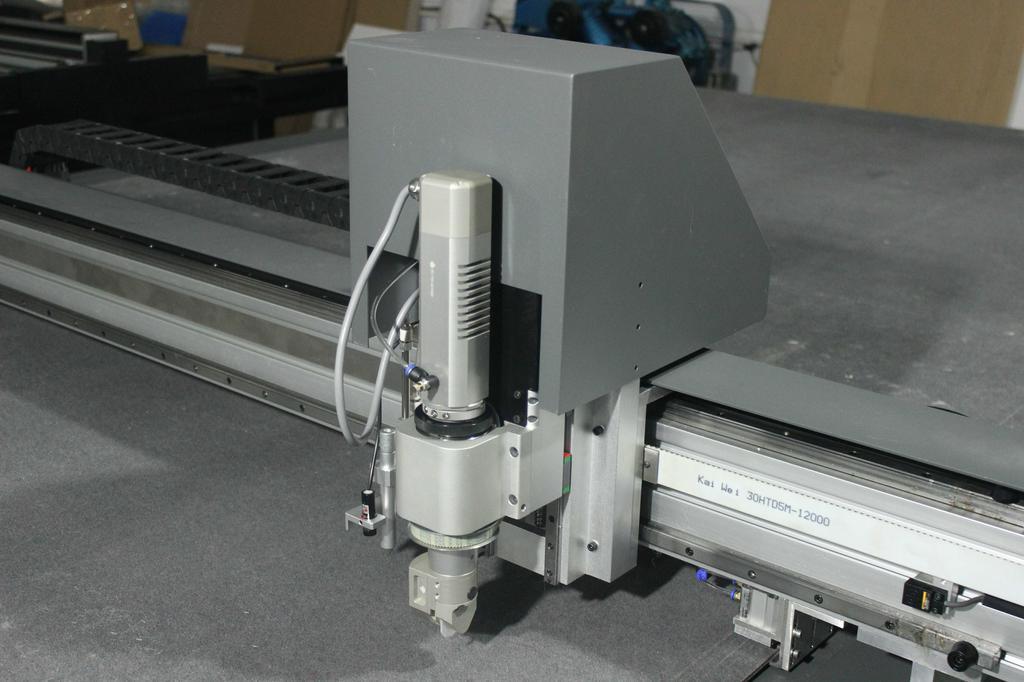

DRT:Rotary Knife Cut
Driven Rotary Tool, driven by?servo motor. It can cut fabric, PU/PVC leather, glass fiber, inflatable, tent, membrane, etc.

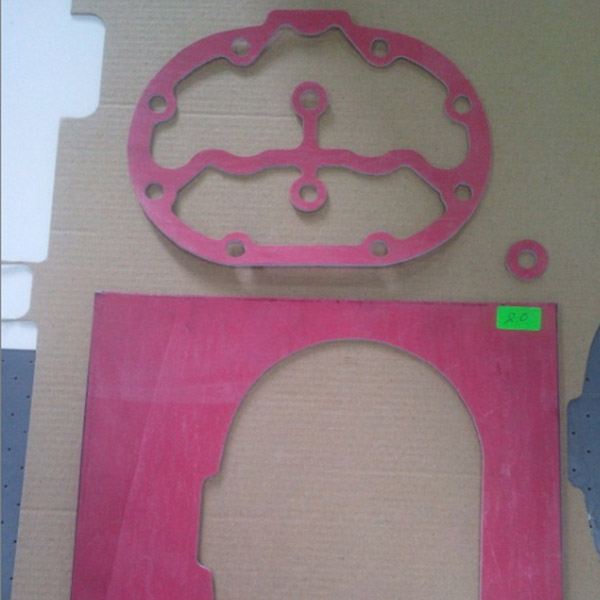

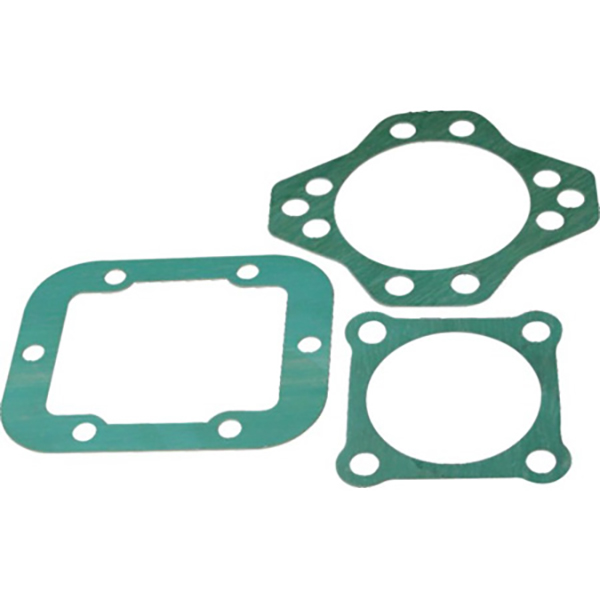

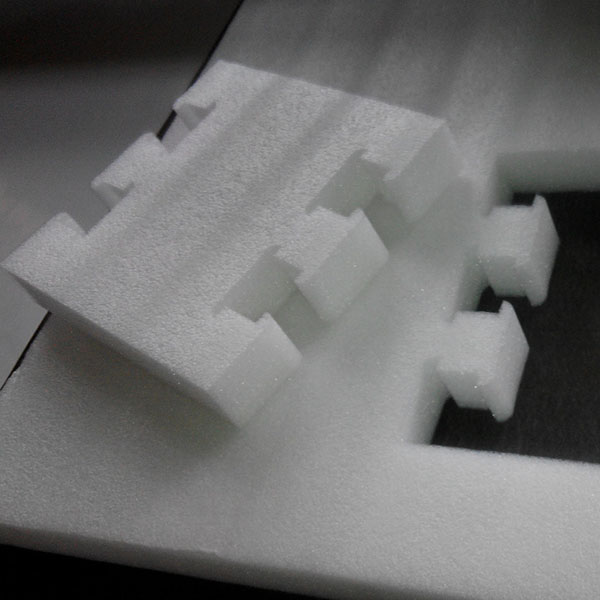

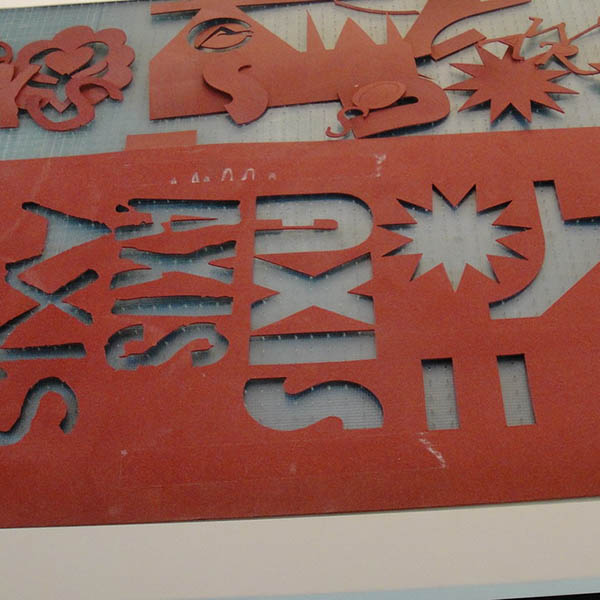

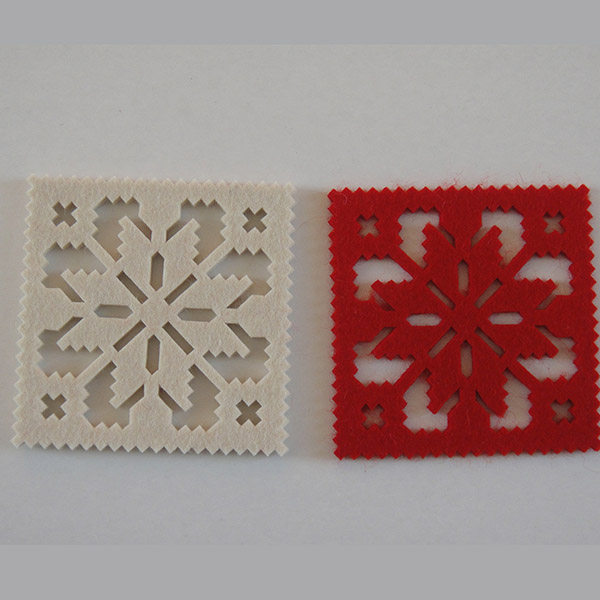

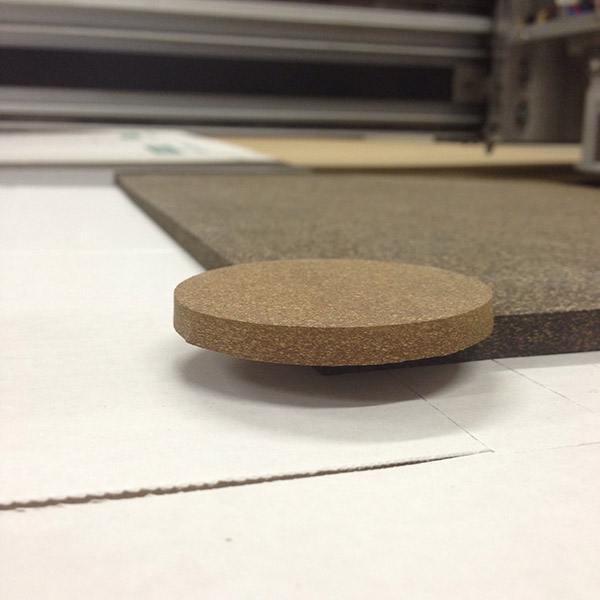

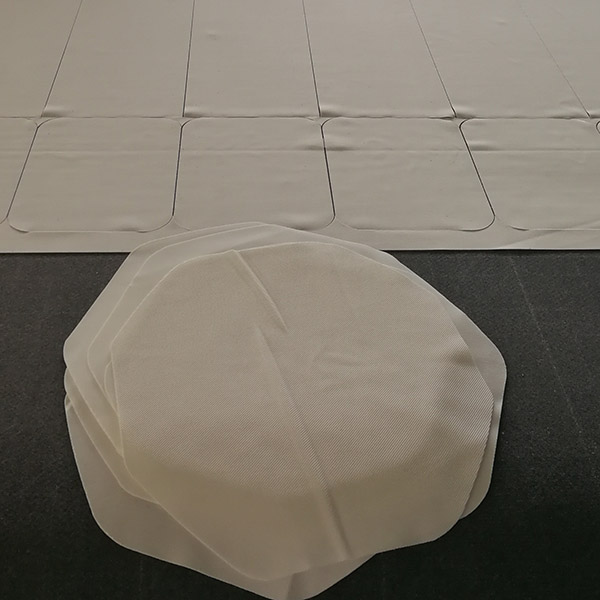

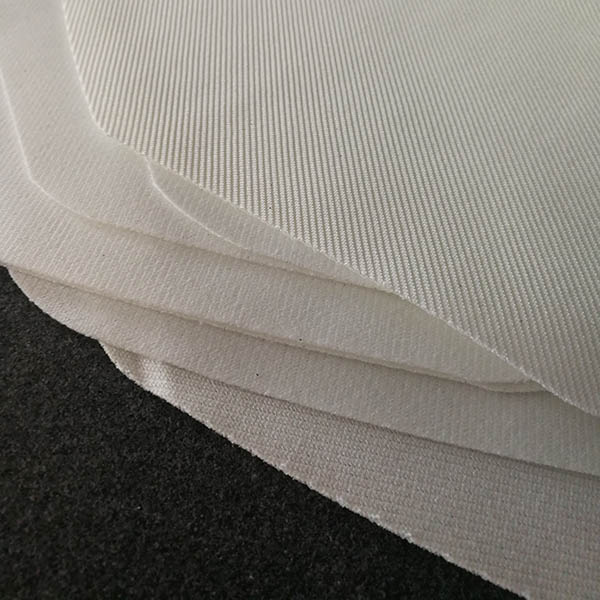

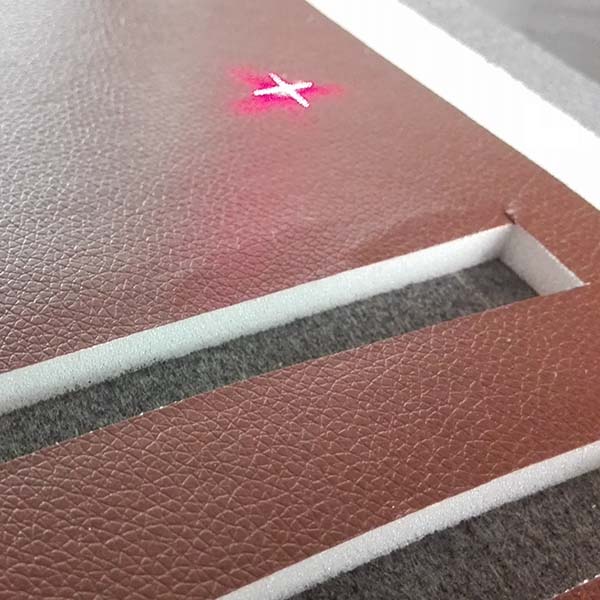

Samples:
